Project:
Mall Cascada Plaza
New Cairo
Category: Commercial
Building Type: Mall
Year of Project: 2025
Completion Period: 2025-2026
Client: Dera House for real estate investment and contracting
Consultant: Dr. Mahmoud
Scope of Work
Curtain wall structural glazing, aluminum cladding, Louvers, windows
glass handrail, structural steel, artificial planter

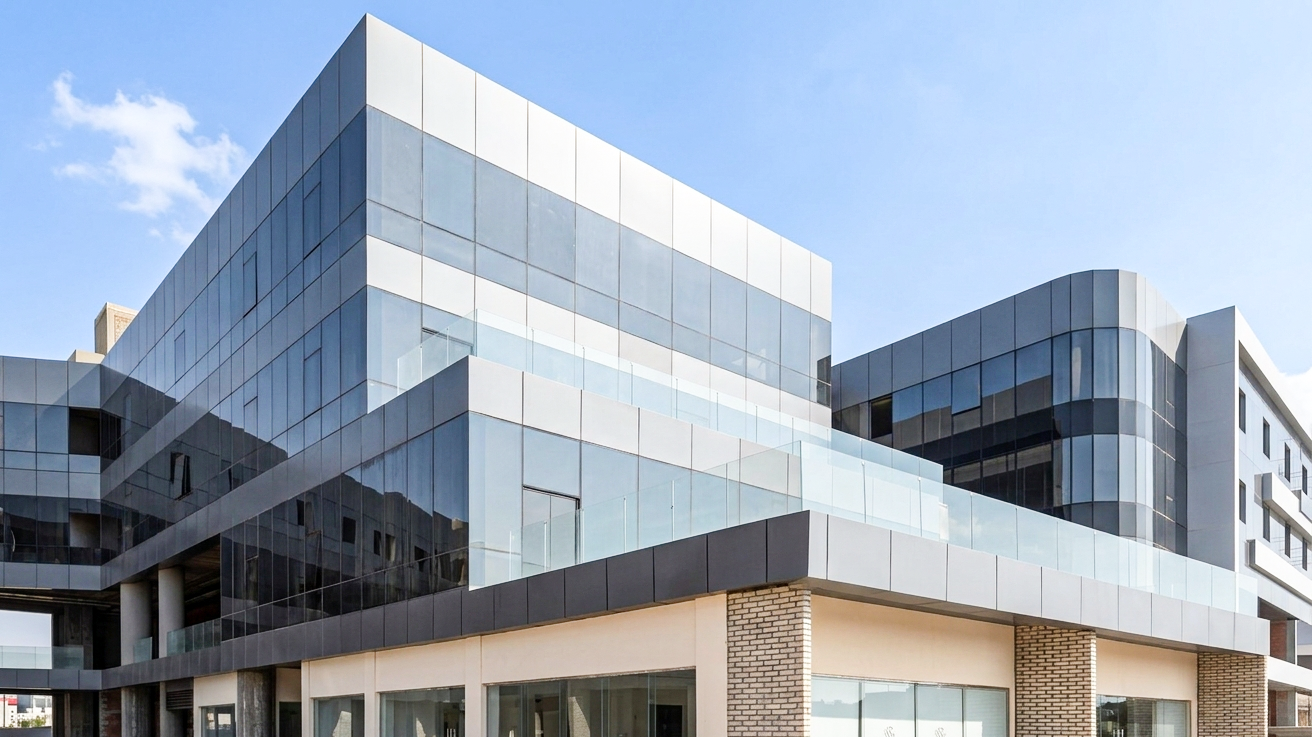

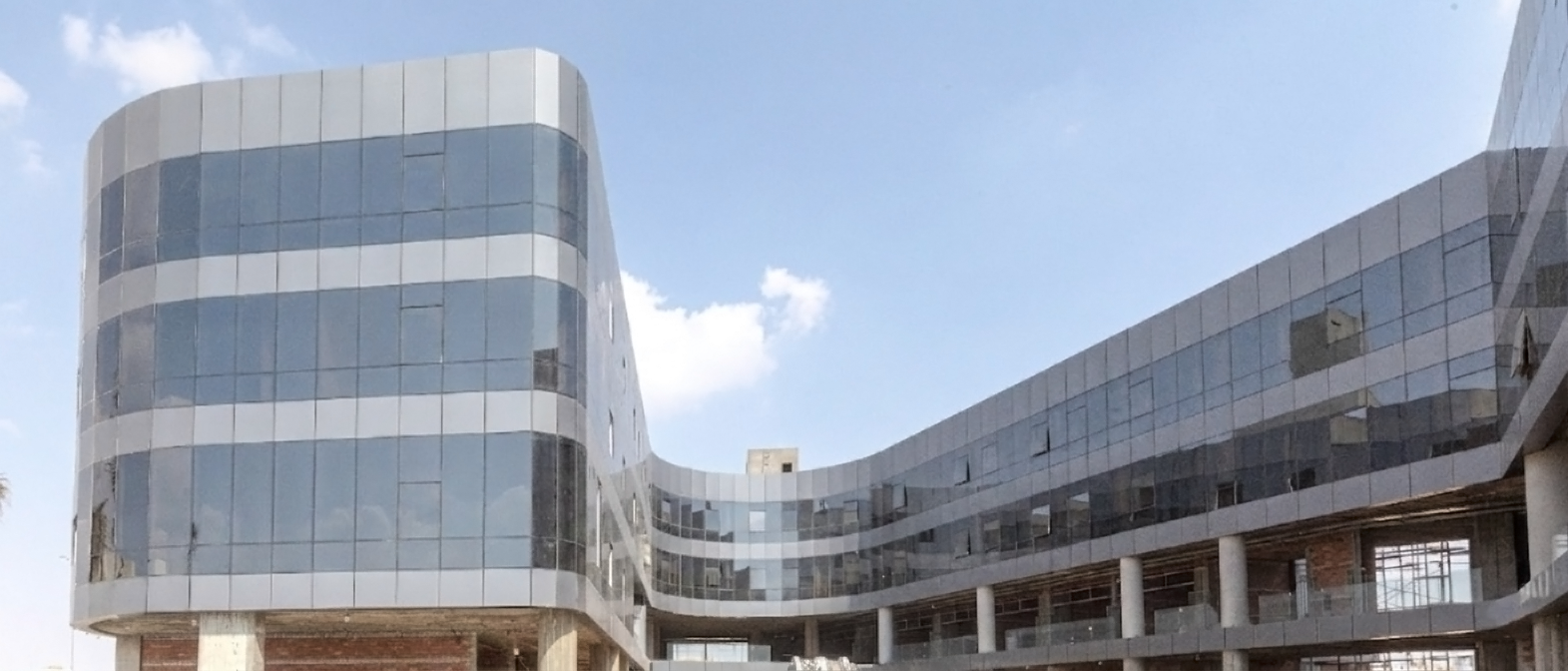

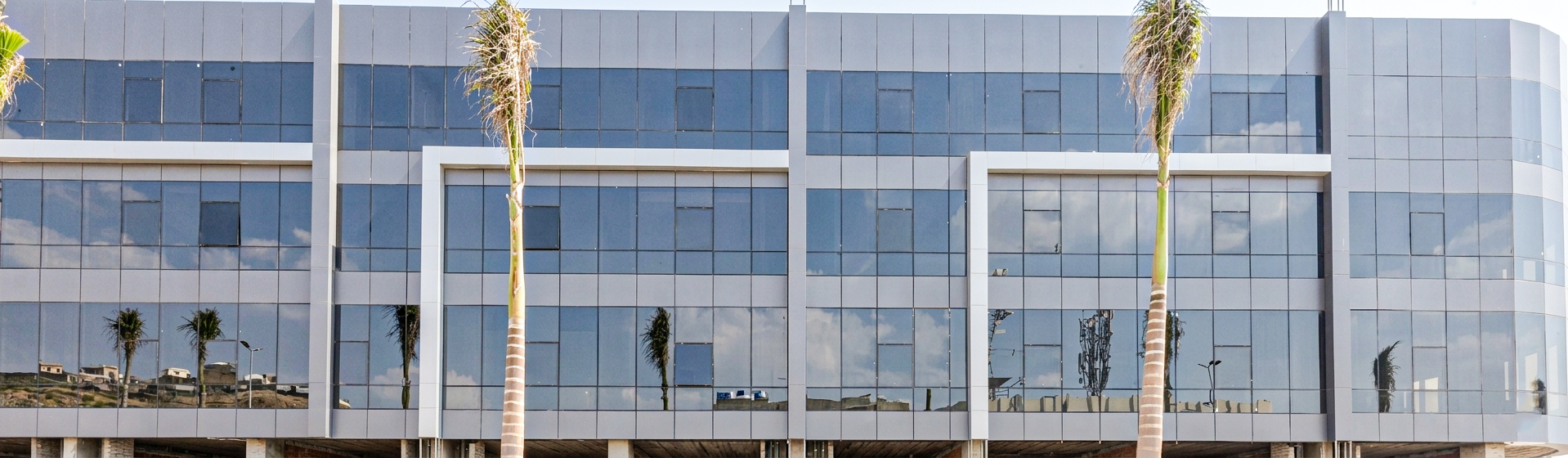

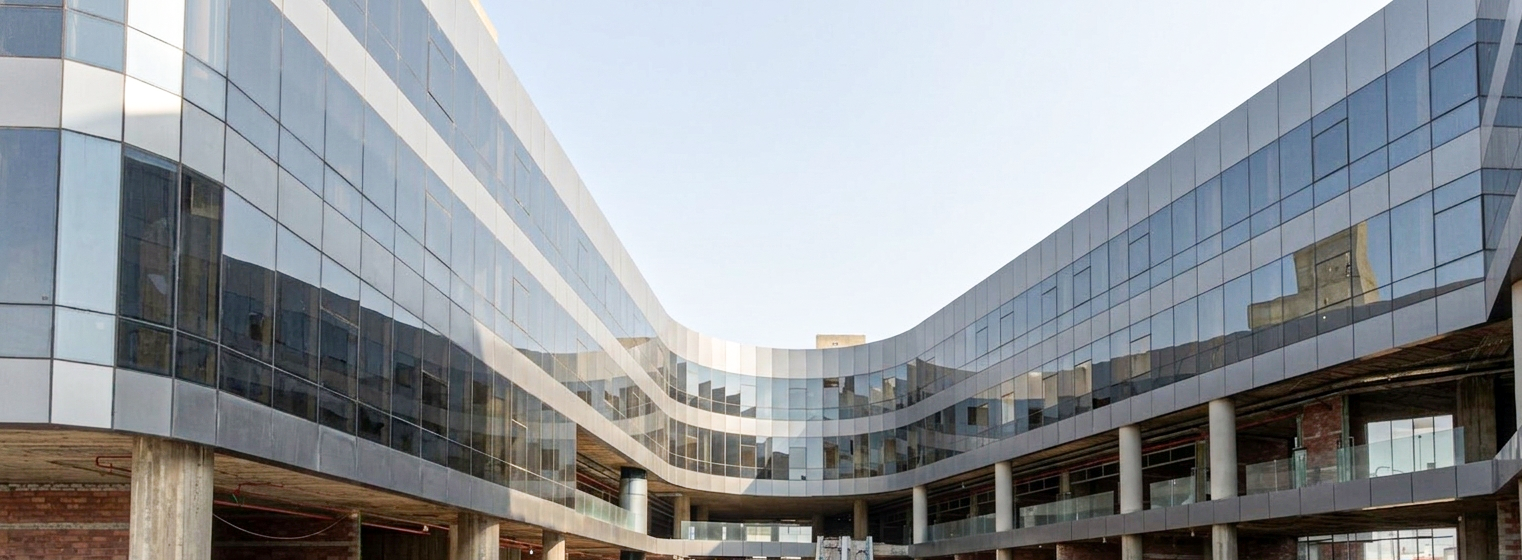

Cascada Plaza Mall in New Cairo features contemporary architectural design developed by renowned engineering consultant Wael Al-Samman. The project reflects SDR Developments’ vision of creating
an integrated destination that combines commercial, administrative, and medical facilities within a single development, offering a dynamic and multifunctional environment
Our Role: Al Adawy’s Contribution
Al Adawy Aluseal was appointed as the specialized façade contractor, entrusted with delivering the building envelope and strengthening the project’s architectural identity. Our contribution focused on combining
high-performance functionality with a refined and contemporary architectural appearance.
Scope of Expertise:
Supply and installation of high-performance aluminum and structural glazing curtain wall systems.
Execution of advanced exterior cladding and bespoke façade solutions.
Integration of architectural elements that enhance both aesthetics and functionality.
Project Objective:
To deliver a durable, high-performance building envelope that ensures long-term structural integrity while creating a contemporary architectural image that aligns with the project's vision.
Suppliers
METACORE ALUMINUM COMPOSITE CO, SAINT-GOBAIN GLASS CO
Aladawy Premium Wall, Aluseal, AkzoNobel Co. & ALU AFRIC for aluminum
Profile Used
GT-50 SG ALUSEAL
Curtain Wall Structural Glazing 50 m
Total Quantity: 1515 m2
METACORE
Aluminum Composite Material (ACM), Polyethylene Core 4 mm
Total Quantity: 2495 m2
aluminum l0uver
Box Sun Louver Panel 80×20 mm
Total Quantity: 143 m2
PK-920
PK-920, Aluminum Sliding system
Total Quantity: 27 m2
STR STL
STR STL Installed for facade cladding support system
Wt: 12 Tons
glass hANDRAIL
13.52 mm laminated glass, fixed in steel U-channel
Total Quantity: 184 L.M
ARTIFICIAL PLANTER
Steel support structure required
for fixing to the facade
Total Quantity: 159 L.M
